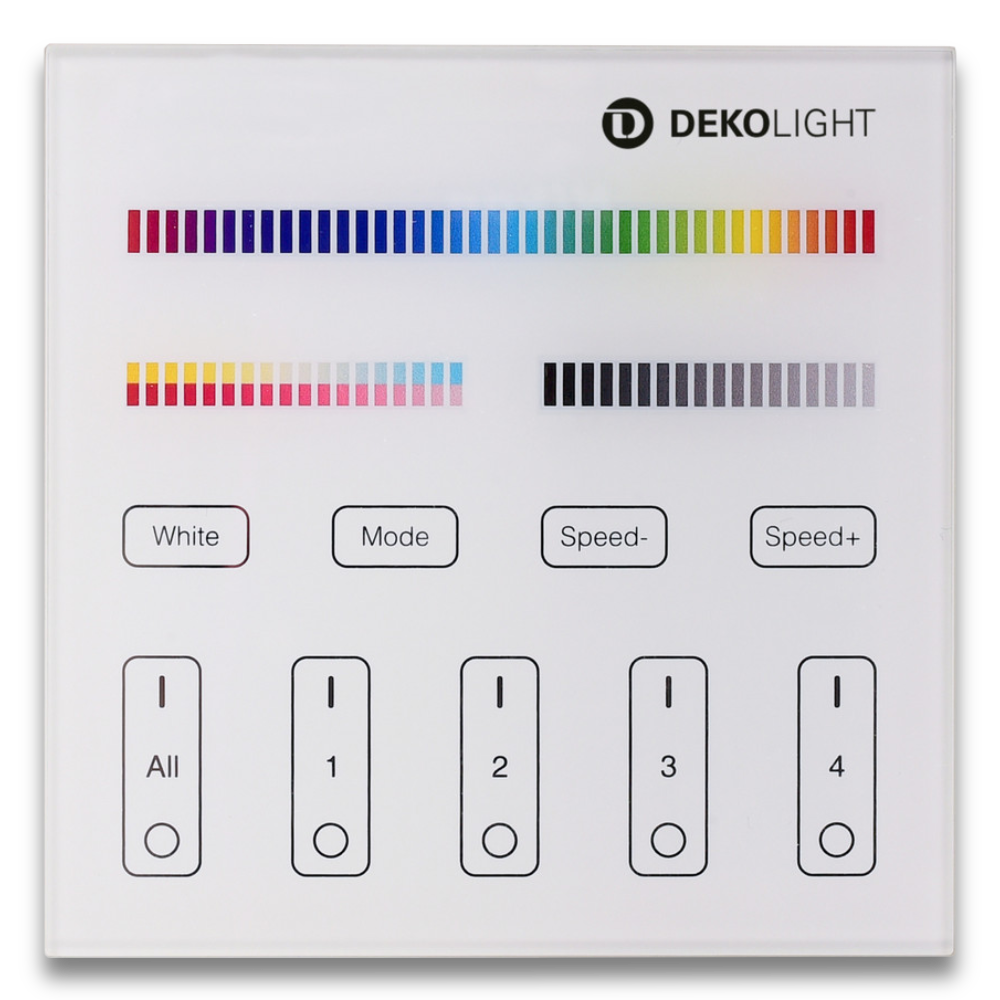

DEKOLIGHT Touchpanel RF-SMART wall remote control with 4 zones suitable for single color, CCT, RGB, RGBW, RGB+CCT
- Wall-mounted remote control for fixed installation
- Dimmable brightness
- Adjustable colour saturation and colour temperature
- 16 million adjustable colours
- Automatic program and program speed control
- Separate white light button
- Up to four different control zones
- Range approx. 30 m
- Simple operation
- Installation on 68 mm single switch box
- AC 100-240 V mains operation
- Low power consumption
- Control of single/CCT/RGB/RGBW/RGB+CCT components
Technical Data
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Input voltage | AC 100-240 V / 50∼60 Hz |
| Power consumption | 2.00 W |
| Connection possibility | Screw terminals |
| Frequency | 2.4 GHz |
| Transmission range | approx. 30m |
| ABSOLUTE MAXIMUM RATINGS | |
| Working temperature | -10˚C – +40˚C |
| Storage temperature | -20˚C – +70˚C |
| IP rating | IP-20 |
| GENERAL CHARACTERISTICS | |
| Channels | 5 |
| Material | PC housing |
| Color | White |
| Mounting | Screw holes |
| DIMENSIONS & WEIGHT | |
| Length | 86 mm |
| Width | 86 mm |
| Height | 9 mm |
| Mounting depth | 24 mm |
| Cut-out diameter | 42.2 mm |
| Weight | 0.145 kg |
